How To Make Silicone Moulds

Silicone moulds have a huge range of applications, from creating prosthetics for special FX, through to architectural moulds for concrete casting, and even jewellery moulds containing intricate details for wax casting.

There are a few important reasons why silicone is used so widely for moulding, such as:

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

Flexibility:

Silicone moulds are highly flexible, allowing them to easily accommodate complex shapes and fine details, which is particularly important in industries like special effects.

Durability:

Silicone moulds can withstand repeated use without deteriorating which is essential in industries like building, where moulds may need to be used multiple times for casting concrete structures.

Heat resistance:

Silicone can withstand high temperatures, which is crucial in industries like jewellery-making, where wax is melted and poured into silicone moulds for casting.

Non-stick properties:

Silicone moulds have non-stick properties, preventing the cast material from adhering to the mould which ensures a clean, smooth finish.

Ease of use:

Silicone moulds are easy to use, require minimal preparation and can be reused multiple times without requiring extensive cleaning or maintenance.

Cost effective:

While silicone moulds may have a higher initial cost compared to other materials, their durability and reusability make them a cost-effective long-term investment.

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

So, the advantages of using silicone to make a mould are clear to see, but how do you go about creating one of your own?

In this guide we take you step by step through the processes of how to make a silicone mould. We'll look at the materials and tools you need, as well as the different stages involved.

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

How to Make Silicone Moulds

Silicone moulds can either be flat or 3D, and the processes for each are fairly similar. Here we look at making a silicone flat mould, such as a prosthetic appliance.

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

Creating a Master

Ultimately, the process begins with creating a pattern, or master, which is placed on a flat surface and contained within moulding walls.

Clay is a good option for creating a master, and non-drying (oil based), sulphur-free clay is the best to use for this method. Non-drying will give you literally all the time in the world to work on your sculpture! It’s easily manipulated between your fingers and softens with warmth.

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

Clays containing sulphur can inhibit the surface cure of silicones, this is something to be aware of when selecting clays. Our range of oil based clays are sulphur free.

For beginner level, or those who haven't handled oil-based clays before, Soft grade clay is slightly easier to work with.

The higher the grade, the tougher it is to work with, but holds detail! This isn’t something you need to worry about at this point, soft grade will help you get the feel of working with clay if new to this.

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

Next, you need a flat surface on which to place the master. You can use a tile, MDF wood sheet – any flat surface you have handy, providing it gives you enough space to sculpt in the centre, and enough space around this for your moulding walls.

So to begin, on your flat surface start placing your clay - don’t start off raising this too high – you want enough depth to sculpt a cut, gunshot wound, slash, whatever your idea may be into it, but not so there is an obvious step of clay. Begin by applying small parts of clay to your surface and continuously adding to get your desired shape.

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

It’s important to know and remember, however the clay looks and sits on the surface; the height of it, texture, etc. will all translate exactly that way into your prosthetics. The reason I say not too high, this will look far too raised on the skin, keeping the clay as flush to the surface as you can, will provide undetectable edges on application.ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

Once you’ve got a base layer and it’s smooth to the surface, you can then begin to refine - You can go in at this point if you wish with some tools to help refine.

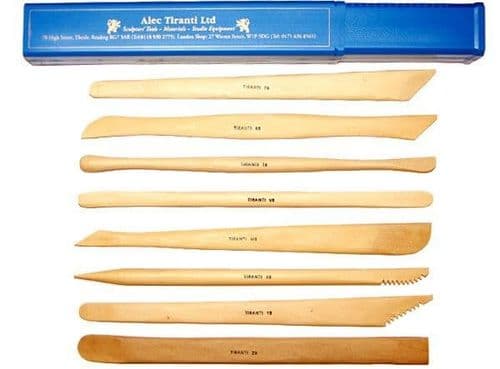

Student Hardware Tools - 8pc Set this is a great set; it includes almost every shape and size to help you refine and detail your sculpt. The comb-like tool in this set (XB) can be used to scrape the surface, and will essentially rake the raised areas until level. To remove those scrape marks, I like to go back in again with another refining tool, ST3 HEAVY TOOLS, further smoothing the clay, ready for your detail layers!

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

Smoothing your clay surface will create loose little clay scrolls, these are just the removed raised areas or rake marks! Brush these away and you can continue your sculpting.ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

This process is going to be layer upon layer of refining, it may not sound like it’s useful, but the results will be effective!! Once this sculpt converts into your prosthetic material, the lumps and bumps of the surface will be very clear when it’s applied as the surrounding skin is going to be flat and smooth. Avoiding this is layers of refining.ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

As soon as you’re happy with the surface, you can then begin to input your wound, scar, etc. design! Using the tools, you can carve into the clay. Using reference images throughout the sculpting process is essential – it will give you details to replicate to make it super realistic!ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

^{Following reference images can be a little gruesome, but great to use when creating realistic injuries!}

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

You will see on all prosthetics there is an outer channel, surrounding the sculpt. This is something we call “flashing”. Flashing is something you also apply to the surface in clay.

ㅤㅤㅤ

When this is applied to the skin, the blending edge being so thin, is what gives you a seamless application. (The area on your flat surface - between the flashing and the sculpt is called the “blending edge”).

Using a small amount of rubbing alcohol (IPA or Acetone) you can melt this edge away from the flashing and it remain completely flush to your skin. This area, and the fact you previously blend your clay so smooth to the board, results in a perfect application!!

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

Essentially to create the channel, you can just roll out a long, even, thin sausage of clay and circle this around your sculpt, leaving a few cm distance between the sculpt and the flashing. Press this down onto the surface; you can then begin to neaten the channel.

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

Once you are happy with your sculpt, and the channel – you now want to move onto creating the walls around.

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

Creating Moulding Walls

This will circle everything, a few cm away from the channel which you will then fill with your moulding silicone.

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

^{PlatSil Gel 25 PlatSil Gel 25 Silicone Rubber is possibly one of our most versatile addition silicones; with  the use of additives, this silicone can be used for life casting, moulding and casting!!}

^{PlatSil Gel 25 is a 25-shore silicone; this state would be too rigid to cast as a prosthetic appliance but a great shore for your flat moulds.}

^{An addition of PlatSil Deadener LV or Smiths Prosthetic Deadener when casting your prosthetic will bring the shore hardness down, depending on the percentage of your addition. Lowering the shore to around a 10, or even lower will resemble flesh exceptionally. So, with the use of one silicone, you have a mould and prosthetic pieces!}

^{It’s a 1:1 ratio, exceptionally low viscosity and translucent; allowing you to pigment according to your design.}

^{​​​​​​​}ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

You can build moulding walls by using Buff Clay, and with hot glue tongue depressor/wooden sticks cut to size around the sculpt, you can even hollow out a plastic cup (if size permits) and hot glue this to the surface. Gluing these to the surface will prevent the fluid silicone seeping out.

If choosing to use buff clay (air-drying), you want to ensure the clay touching the board is secured to prevent the same as above – silicone seeping out. It’s not entirely essentially to get the clay super smooth; it won’t affect the moulds use as it’s the outer edge of the mould; it will however make a neater mould! Simply running a flat tool around the inside of the clay will smooth any lumps and bumps.

Now you have the walls built around your sculpt, it’s time to prepare your silicone to mould.

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

Preparing Your Silicone

In two separate cups, measure out (by weight or volume) exact quantities of your part A and B. At this point, pigmenting your mould isn’t necessary but some prefer to have a bright colour so that it’s easy to see the casting silicone over the blending edge, etc. if you think this will help you, add a small drop of your chosen colour Silicone Pigments to part B.

When you’re ready, begin to mix these two parts together – the pigmented B part will allow you to see when the parts are fully combined as you will no longer see streaks of the clear/milky part A.

Bear in mind; PlatSil Gel 25 has only a 5-minute working time before it begins to thicken. The thicker the consistency, the likelier it is for you to entrap air bubbles in the mix. Gel 25 is a low enough viscosity for you to be able to use pouring techniques to avoid this; pouring from a height and allowing the flow to run super thin, pouring into one spot and allowing it to travel around the walls or vacuum degassing.

Once you’ve poured your silicone into the walls, give the silicone an hour before demoulding. By this time, it should have fully cured and isn’t leaving fingerprints when you touch test. Begin removing walls, and carefully peel back the silicone off the surface and clay. Begin removing any clay that has remained in the silicone and clean with a gentle brush of IPA.

You’re now ready to begin casting! Before you go straight back in with silicone, you’ll need layers of cap plastic, which we previously mentioned!

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

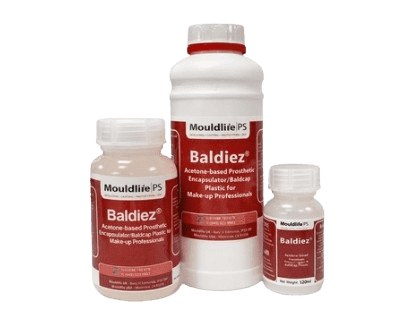

^{Super Baldiez diluted with IPA}

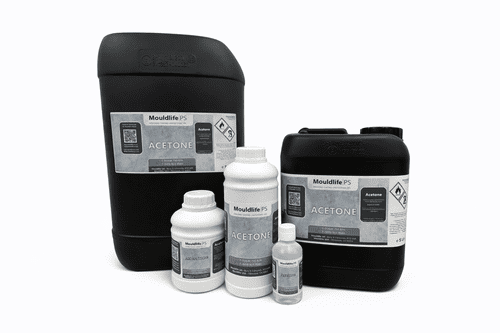

^{Baldiez diluted with ACETONE}

Brushing or airbrushing this solution = 6 parts IPA/ACETONE to 1-part Super Baldiez/Baldiez (6:1) in multiple, thin layers (making sure they’re dry in between each layer)

^{A way to test you have applied enough cap-plastic, grab a sewing needle, on the raised border outside of the flashing, pierce and lift the cap plastic, if you can lift the cap plastic and it’s not showing any holes – you have enough layers!}

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

Once you’re done applying your cap plastic, you can begin preparing your casting silicone. This time you’ll be including softener, flesh pigments and flocking (if desired). In 3 separate cups, measure equal parts of A and B, you can add up to 100% of Part C (softener) to PlatSil Gel 25; this is up to 100% of your mixed A+B.

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ​​​​​​​ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

^Examples:

^{A: 50g}

^{B: 50g}

^{= 100g}

^{C: 100% = 100g}

^{= 200g (A/B + C)}

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ​​​​​​​ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

Again, add silicone pigments and Flocking to Part B

Flocking are small fibres which when mixed into silicone with pigment break up the tone.

Mix all 3 parts together equally, and as before, pour from a height and in one spot to reduce air bubbles. Allow the mould to fill.

Using a wooden tongue depressor, scrape over the surface, flattening the silicone and allowing the excess to run off the mould. Here is where a pigmented mould helps: if there are any remaining trails of silicone that the tongue depressor missed, you can easily see where and wipe them away gently (not disturbing the cap plastic) with a cotton bud.

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ​​​​​​​ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

Allow an hour for a full cure and begin peeling out of the mould. Using translucent powder, brush this over the surface, and when you raise a corner from the mould, begin swiping the prosthetic away from the mould with the powder, taking away the tackiness.

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ​​​​​​​ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

Once your silicone has cured, you can go back in with cap plastic and sandwich the silicone. I personally like the tackiness of the silicone without cap plastic on the back. A little brush of IPA to remove the powder, along with your glue on application really helps with adhesion. It also prevents an overly thick blending edge. This is simply preference, you should definitely experiment to find what suits you best!

ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ​​​​​​​ㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤㅤ

You now have a prosthetic appliance!!
